Diesel engine pump sets

Diesel engine pump sets
C series Diesel engine pump sets Manufacturers and Suppliers - China Haina pump;Diesel engine pump sets apply to irrigation,sewage project.
Send Inquiry

Packaging & Delivery
Diesel engine pump sets Manufacturers and Suppliers:Haina pump
Packaging Details:exporting plywood case
Delivery Detail:30days
Flow Rates:8m3/h-1275m3/h
Head:6m-65m

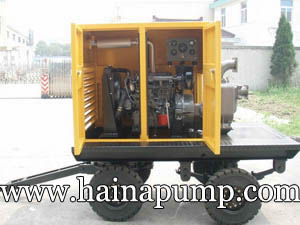

Trailer-Diesel-engine-pump-sets-for-irrigationDiesel engine pump set Specifications
1:apply to irrigation,sewage project
2:fast delivery,good packing
3.Stable performance, reliable operation;
4.Rapid self-priming, high suction head;
5.Back-pull-out construction: convenient for maintenance and trouble shooting. Daily maintenance can be performance rapid by common head tools, saving time and labor;
6.Semi-open impeller structure and non-clogging design:Strong passing capacity, Diameter of maximum solid handling is 76.2mm;
7.Convenient usage: The pump can be mounted high and dry at floor level, with only the suction line down in the liquid.(the pump shall be filled with water for first start);

Diesel engine pump sets Specification:
1.Inlet/Outlet:2''(50mm), 3''(75mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2.Skid Mounted on Trailer:2 or 4 wheels Trailer/Trailor,Cart
3.Impeller Diameter:158.74mm-457.2mm
4.Flow Rates:8m3/h-1275m3/h
5.Head:6m-63m
6.Rotary Speed:550RPM-2150 RPMdiesel-engine-water-pump-sets
7.N.W:92KG-998KG
8.G.W:114KG-1066KG
9.Solid Passing:20.63mm-76.2mm
10.Material:Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276.
11.Diesel Driving:Water cooled or air cooled
12.Method of Connection:Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
13.Drive Variation:Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor
14.Horsepower:1HP-125HP
15.Certification:ISO9001:2008
16.Diesel engine pump sets Package:Exporting plywood case
