KCB oil pump

Origin: China The product model: KCB53.3 KCB55 Brand: Haina Packing: Marine wooden case Commodity Numbers: hn10001 Minimum order quantity: 1 Payment Terms: L/C,T/T KCB oil pump detailed introduction

Origin: China
The product model: KCB53.3   KCB55 KCB200 KCB300 KCB960 KCB5400
Brand: Haina
Packing: Marine wooden case
Commodity Numbers:   hn10001
Minimum order quantity:    1
Payment Terms:     L/C,T/T

KCB oil pump detailed introduction

KCB Gear Pump is suitable to carry various oils, such as the thick oil, diesel fuel and lubricator, animal and vegetable oil etc.

Also KCB Gear Pump is available to transport the fluidities with low flashing point by equiped with copper, gear, such as gasolene and benzene, etc.

Temp<150 degree

Viscosity: 5---1500cst

KCB Gear Pump has safety valve itself when the pump works under the high pressure

Shaft seal has skeleton oil seal, Mechanical seal and stuffing seal. Please it should be indicuted when placing order.

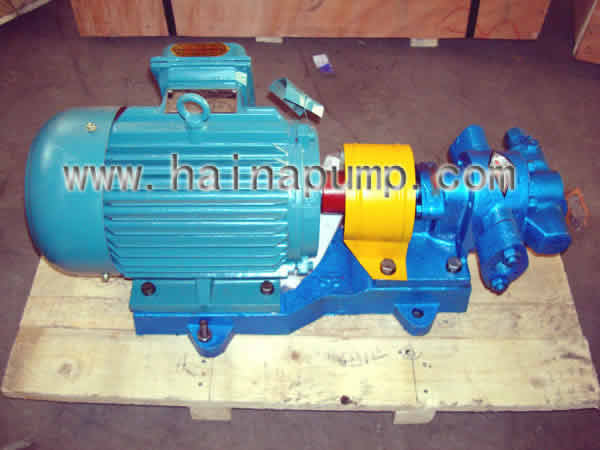

KCB oil pump pictures
kcb-oil-pump

Technical Paramter:
Flow: 1.1m3/h~570m3/h
Discharge pressure: 0.28Mpa~1.45Mpa
Speed: 720rpm~1400rpm
Dia of inlet & outlet: 3/4"~350mm

Model	Caliber (Inch)	Flow (L/min )	Pressure (MPa )	Suction Lift (m )	Motor power (KW )
KCB-18.3	3/4	18.3	1.45	5	1.5
KCB-33.3	3/4	33.3	1.45	5	2.2
KCB-55	1″	55	0.33	5	1.5
KCB-83.3	1 1/2″	83.3	0.33	5	2.2
KCB-135	2″	135	0.33	5	4
KCB-200	2″	200	0.33	5	4
KCB-300	3″	300	0.33	5	5.5
KCB483.3	3″	483.3	0.33	5	7.5
KCB483.3	3″	483.3	1.0	5	11
KCB-633	4″	633	0.28	5	11
KCB-960	4″	960	0.3	5	18.5
KCB1200	6″	1200	0.6	3	37
KCB1600	6″	1600	0.6	3	45
KCB1800	8″	1800	0.6	2.5	55
KCB2500	8″	2500	0.6	2.5	75
KCB3800	10″	3800	0.6	2	110
KCB5400	10″	5400	0.6	2	110
KCB7600	14″	7600	0.6	2	200
KCB9600	14″	9600	0.6	2	250
