Three Screw Pump

Three Screw Pump flow range of 0.6 - 200m3/h,Three screw pump stable pressure applied to petroleum, shipbuilding and other industries.

Models:3G
Flow:0.6 - 200m3/h
Installation: vertical or horizontal
Three Screw Pump Exhaust Pressure：0.6 - 6MPa

Three Screw Pump Basic Info.
Pressure Medium: Oil
Export Markets: Global
Additional Info.
Packing: Marine Wooden Case
Standard: ISO 9001: 2000; CE
Origin: Cangzhou
HS Code: 8413604090
Production Capacity: 9000units/Year

Product Description

Application:
This series three screw pump applies to deliver clean and non-corrosive medium which has lubricating property at

temperature below 150 centigrade with the viscosity of 3-760cst, The pump's working pressure range form 0.4Mpa to

6.0Mpa and flow capacity range from 0.4m3/h to 200m3/h.

Feature
(1)Medium is delivered in axial direction continuously without agitation and pulsation.
(2)Small vibration and low noise
(3)High pressure and high efficiency
(4)Simple structure, easy disassembly and assembly
(5)Small volume and lighe weight
(6)Slight wear and long life of the pump

Structure:
The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

Material:
The driving and driven screw 16MnCrS5, 40Cr, 45, 38CrMoALA
Pump casing: HT200, QT450-10, ZCuSn10Pl, ZG270-500

Example of pump model
Eg: 3G25X4-46
3G: Three screw pump
25: Out-side dizmeter of the driving screw 25mm
46: 46 pitch angle of the screw
R: Hezvy fuel oil
R: Light fuel oil
W: High temperature heated oil
N: High visc oil
A: Code of design improvement
S: Double suction

Technical parameter:
Flow: 0.4m3/h~200m3/h
Discharge pressure: 0.4Mpa~6Mpa
Speed: 720rpm~2900rpm
Temperature: 0 deg C to 150 deg C.

Three screw pump pictures：

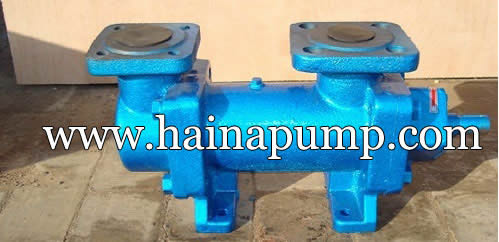

3G-three-screw-pump

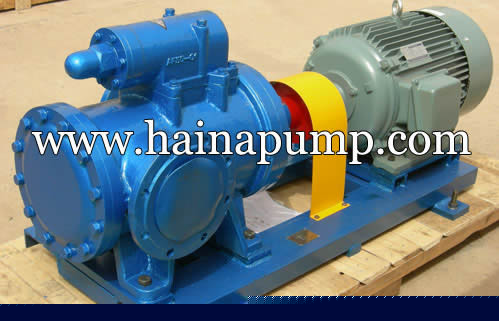

Three-screw-pump-motor-group

Model	Exhaust Pressure MPa	Capacity Q		Speed r/min	(NPSH)r m	Efficiency η %	Motor
Model	Exhaust Pressure MPa	m 3 /h	L/min	Speed r/min	(NPSH)r m	Efficiency η %	Power kw	Model
25× 4-46	1.0	0.8	13	1450	4	62	0.75	Y802-4
	2.5	0.6	10	1450	4	60.6	1.5	Y90L-4
	1.0	2.0	33	2900	4.5	59.4	1.5	Y90S-2
	2.5	1.6	26	2900	4.5	69	3	Y100L-2
30× 4-46	1.0	1.6	26	1450	4.5	63.5	1.1	Y90S-4
	2.5	1.2	20	1450	4.5	61	2.2	Y100L1-4
	1.0	3.6	60	2900	5	60	2.2	Y90L-2
	2.5	3.2	53	2900	5	69	4	Y112M-2
36× 4-46	1.0	2.8	46	1450	4.5	66	2.2	Y100L1-4
	2.5	2.4	40	1450	4.5	66.5	4	Y112M-4
	1.0	6.5	108	2900	5	60.5	4	Y112M-2
	2.5	6	100	2900	5	72	7.5	Y132S2-2
42× 4-46	1.0	4.8	80	1450	5	62	4	Y112M-4
	2.5	4.2	70	1450	5	73	5.5	Y132S1-4
	1.0	10.5	175	2900	5.5	61	5.5	Y132S1-2
	2.5	10	166	2900	5.5	72	15	Y160M2-2
45× 4-46	1.0	6.3	106	1450	5	70	3	Y100L2-4
	2.5	5.9	99	1450	5	74	7.5	Y132M-4
	1.0	13.5	225	2900	5.5	60	7.5	Y132S2-2
	2.5	13	217	2900	5.5	75	15	Y160M2-2
60× 4-46	1.0	15.5	255	1450	5	71.3	11	Y160M-4
	2.5	14.5	245	1450	5	74	15	Y160L-4
	1.0	32	533	2900	5.5	63	18.5	Y160L-2
	2.5	31.5	525	2900	5.5	77	37	Y200L2-2
70× 2-46	0.6	24	400	1450	5	71	7.5	Y132M-4
	1.0	23.5	390			75	11	Y160M-4
	1.6	22.5	370			76	15	Y160L-4
70× 4-46	1.0	24.5	408	1450	5	72.5	18.5	Y180M-4
70× 4-46	2.5	23.5	392	1450	5	79	30	Y200L-4
80× 2-46	0.6	36.5	608	1450	5	72	11	Y160M-4
	1.0	35	594			75.5	18.5	Y180M-4
	1.6	34.5	575			76.5	22	Y180L-4
80× 4-46	1.0	37	617	1450	5.5	72	30	Y200L-4
80× 4-46	2.5	35	590	1450	5.5	78.1	45	Y225M-4
100× 2-46	0.6	72.5	1208	1450	5	73	22	Y180L-4
	1.0	71	1183			77	37	Y225S-4
	1.6	60.5	1158			79	45	Y225M-4
100× 4-46	1.0	72.5	1208	1450	5.5	73	55	Y250M-4
100× 4-46	2.5	70	1165	1450	5.5	78.5	75	Y280S-4
S100× 3-27	0.6	72	1196	1450	6	62	22	Y180L-4
	1.6	70	1160			72	55	Y250M-4
	2.5	69	1145			74	75	Y280S-4
S120× 3-27	0.8	123	2055	1450	6	74.5	55	Y250M-4
	1.5	120	2010			76	90	Y280M-4
	2.5	115	1920			78.5	132	Y315M-4

We have more three screw pump, please contact us!
