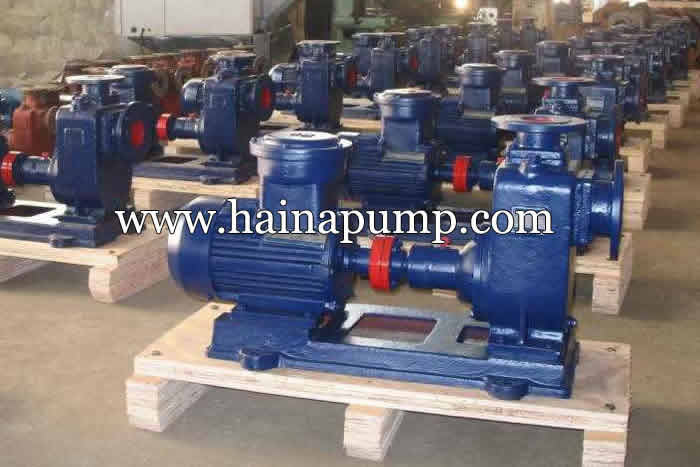

Self-Priming Sewage Water Pump

Self-Priming Sewage Water Pump
Packaging Delivery Packaging Detail: standard export wood case packing or as required Self-Priming Sewage Water Pump Delivery Detail: 7-20 days Trade Terms: CIF Payment Terms: L/C, T/T 1.Impeller Diameter: 158.75-457.2mm 2.Rotary Speed: 650
Send Inquiry

Packaging & Delivery
Packaging Detail: standard export wood case packing or as required
Self-Priming Sewage Water Pump Delivery Detail: 7-20 days
Trade Terms: CIF
Payment Terms:  L/C, T/T

1.Impeller Diameter: 158.75-457.2mm
2.Rotary Speed: 650-2900r/m
3.Flow rates: 46-1275m3/h
4.Head: 33-70m
5.Motor: 1HP-125HP
6.N.W: 92KG-1066KG
7.G.W: 114KG-1250KG
8.Max Solid: 20.63-76.2mm

Self-Priming Sewage Water Pump Main character:
1. Beautiful shape and find structure, reliable performance
2. With strong capacity of self priming, no need to equip with flap valve
3. Non-clog, and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. Special check valve structure can make the pump quickly next time.
7. When operate, the pump can self-priming with gas and liquid at the same time.
8. Low rotary speed, reliable operation, long useful life, easily maintenance.
9. Advanced pressure protector make pump operate safety.
10. Very competitive price, high quality, small MOQ, fast delivery,.

Features: Solids Handling Impeller, Exclusive Abrasion-Resistant Seal, Removable Cover Plate with Easy-Grip Handle,

Replaceable Wear plate, Removable Rotating Assembly.

Self-Priming Sewage Water Pump Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the sewage of uptown;
3. Sewage transportation in Hospital, hotel, slaughter house, fish breeding;
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Sewage and deposit of water purifying system;
7. Industrial sewage of light industry, paper mill, textile, food prpcessing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;

 ZW-Self-Priming-Sewage-Water-Pump



Model
Flow
(m 3 /h)
Head
Motor power
Speed
r/min
 (NPSH)r
(m)
Suction Lift
(m)
Self-priming
min/5m
kg
WS25-8-15
8
15
1.5
2900
2.0
5.5
3
100
WS32-5-20
5
20
2.2
2900
2.5
5.5
3
100
WS32-10-20
10
20
2.2
2900
2.5
5.5
3
100
WS32-9-30
9
30
3
2900
2.5
5.5
3
120
WS40-10-20
10
20
2.2
2900
2.5
5.5
3
100
WS40-20-15
20
15
2.2
2900
2.5
5.5
3
100
WS40-15-30
15
30
3
2900
2.5
5.5
3
120
WS50-10-20
10
20
2.2
2900
2.5
5.5
3
100
WS50-20-12
20
12
2.2
2900
2.5
5.5
3
100
WS50-15-30
15
30
3
2900
2.5
5.5
3
120
WS50-20-35
20
35
5.5
2900
2.5
5.5
3
150
WS65-30-18
30
18
4
1450
2.5
5.5
3
200
WS65-25-30
25
30
5.5
2900
3.0
5.5
3
20
WS65-25-40
25
40
7.5
2900
3.0
5.5
2
200
WS65-40-25
40
25
7.5
1450
3.0
5.5
2
200
WS65-65-25
65
25
11
2900
3.0
5.5
2
240
WS80-40-16
40
16
4
1450
3.0
5.0
3
240
WS80-40-25
40
25
7.5
1450
3.0
5.5
2
200
WS80-25-40
25
40
7.5
2900
3.0
5.5
2
200
WS80-65-25
65
25
11
2900
3.0
5.5
2
240
WS80-80-35
80
35
15
2900
3.0
5.5
2
285
WS80-80-35
80
35
15
1450
3.0
5.5
3
450
WS80-50-60
50
60
22
2900
3.0
5.0
2
340
WS100-100-15
100
15
7.5
1450
4.0
5.5
3
300
WS100-80-20
80
20
7.5
1450
4.0
5.5
3
300
WS100-100-20
100
20
11
1450
4.0
5.5
3
340
WS100-100-30
100
30
22
1450
4.0
5.5
3
510
WS125-120-20
120
20
15
1450
4.5
5.5
2
500
WS150-180-14
180
14
15
1450
5.0
5.5
2
500
WS150-180-20
180
20
22
1450
5.0
5.0
3.5
570
WS150-180-38
180
30
37
1450
5.0
5.0
3
680
WS150-180-38
180
38
55
1450
5.0
6.0
3
800
WS200-280-14
280
14
22
1450
5.0
5.0
3.5
700
WS200-280-28
280
28
55
1450
4.8
5.2
3
940
WS250-420-20
420
20
55
1450
6.0
4.5
2.5
1150
WS300-800-14
800
14
55
1450
6.0
4.6
2.5
1140
